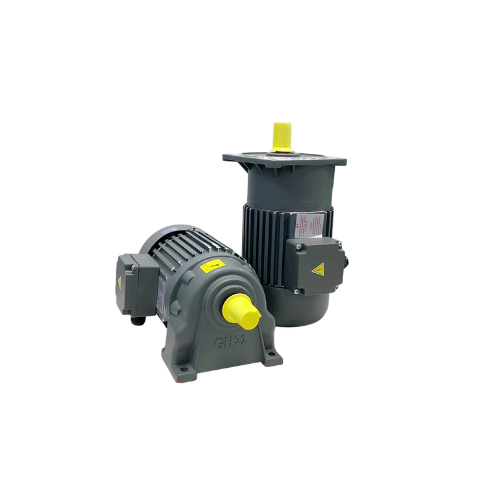

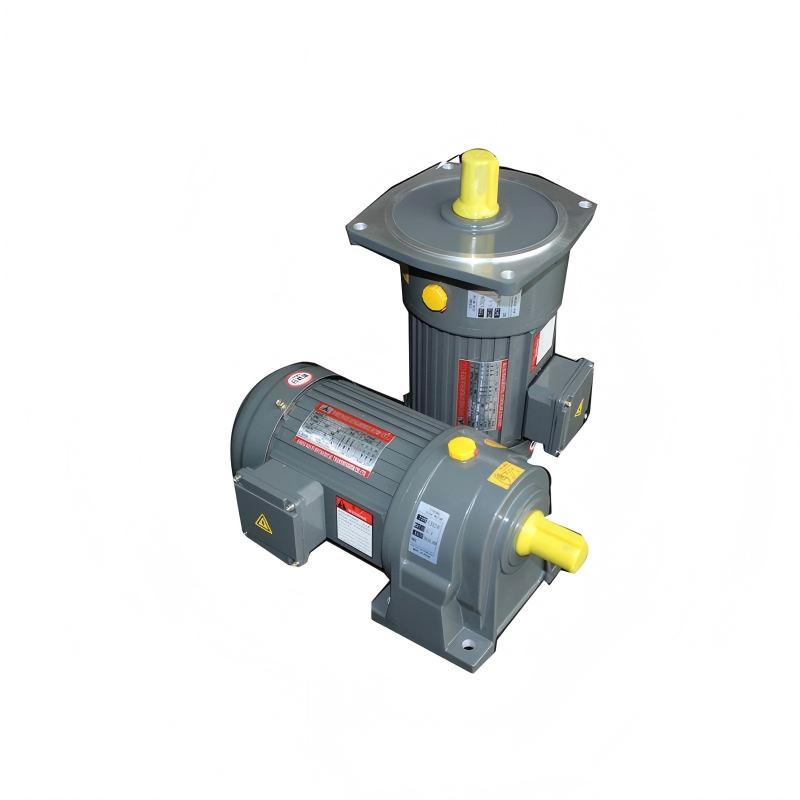

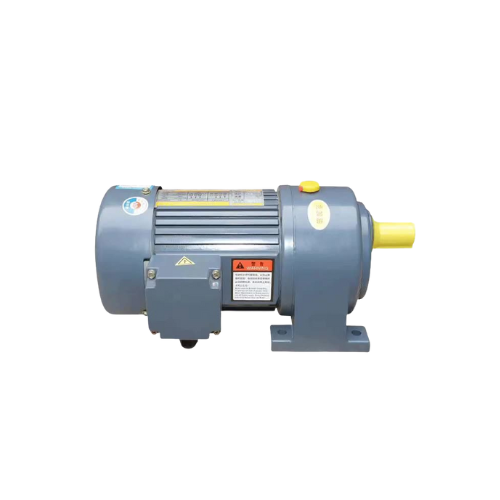

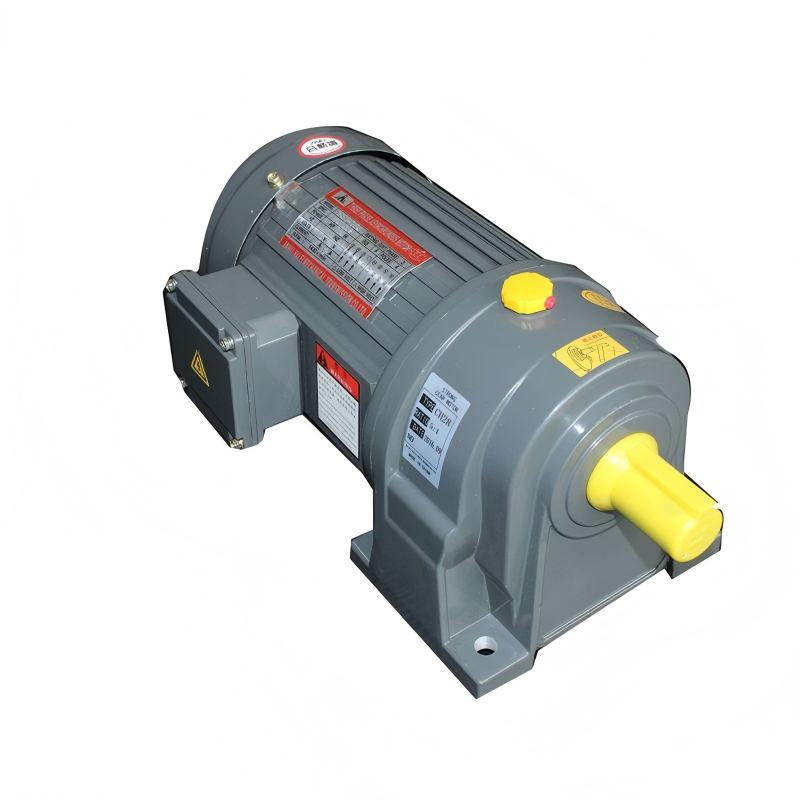

CH/CV Horizontal Reducer — Helical Gear Motor (with Brake)
The CH/CV horizontal reducer, commonly known as a helical gear motor (with brake) or reduction motor, is an integrated unit combining a gearbox and a motor. It is usually assembled and supplied as a complete unit by a professional gear motor manufacturer.
Gear motors are widely used in the steel industry, the machinery industry, and in systems assembled with magnetic powder clutches and brakes.
An AC gear motor achieves speed reduction by transmitting high-speed power from a motor, internal combustion engine, or other power source to the input shaft, where the smaller gear engages with the larger gear on the output shaft, thereby reducing the output speed.
Specification
|
AC Voltage
|
3 phase 380V
|
Phase
|
Three-Phase
|
|
Rated Power
|
100W-7500W
|
Rated Speed
|
1450 RPM
|
|
Model Number
|
RCH3240060S
|
Brand Name
|
wintop
|
|
Place of Origin
|
GuangDong, China
|
Motor Mounting Type
|
Foot Mount
|
|
Efficiency
|
IE2,IE3
|
Frame
|
According to the design
|
|
Frequency
|
50 Hz 60 Hz
|
Protect Feature
|
Waterproof
|
|
Type
|
Asynchronous Motor
|
Warranty
|
1 year
|
|
Output Speed
|
0~1450 RPM
|
Ratio
|
3-10000
|
|

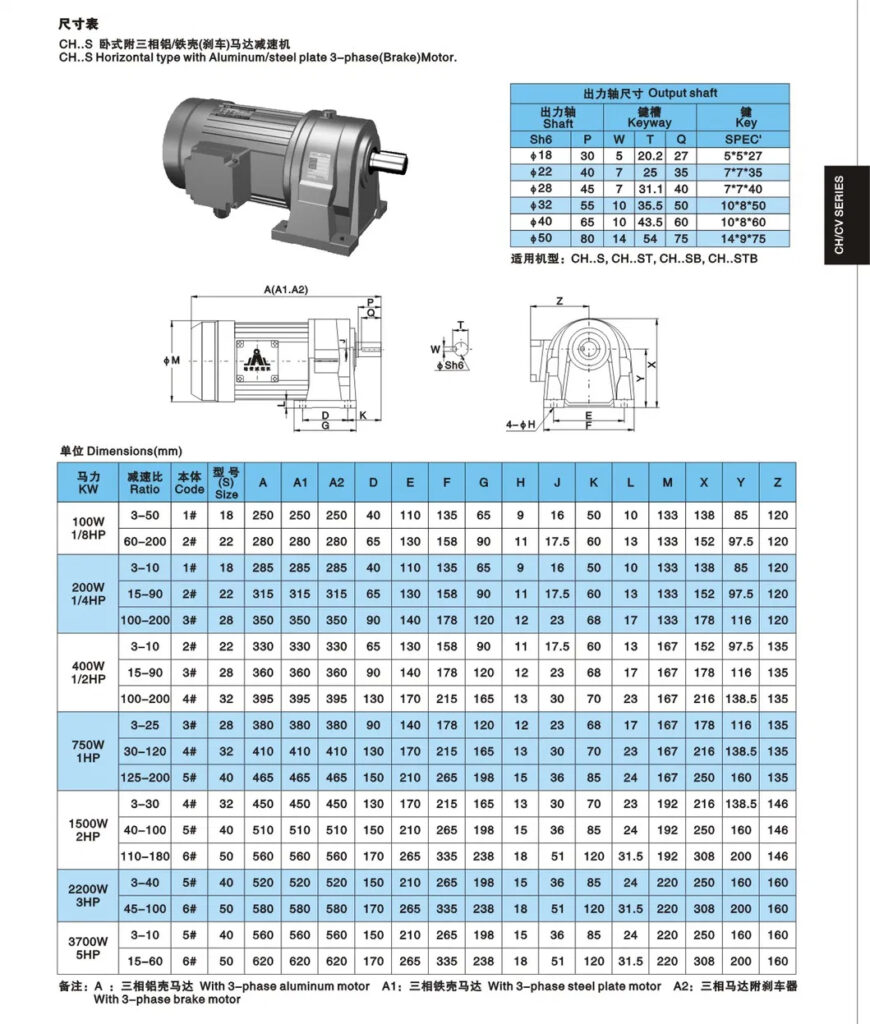

Output Shaft Dia.(mm)
|
18, 22, 28, 32,40, 50
|
Material
|
Aluminum Alloy
|
|
Brake
|
Manual release/DC24V Brake
|
Installation
|
CH(foot mounted)/CV(flange mounted)
|
|
Warranty
|
1 year
|
Insulation level
|
F
|
|
Working environment
|
nt: -10℃~+40℃, Humidity<90%
|
Certificate
|
3C, CE…
|
