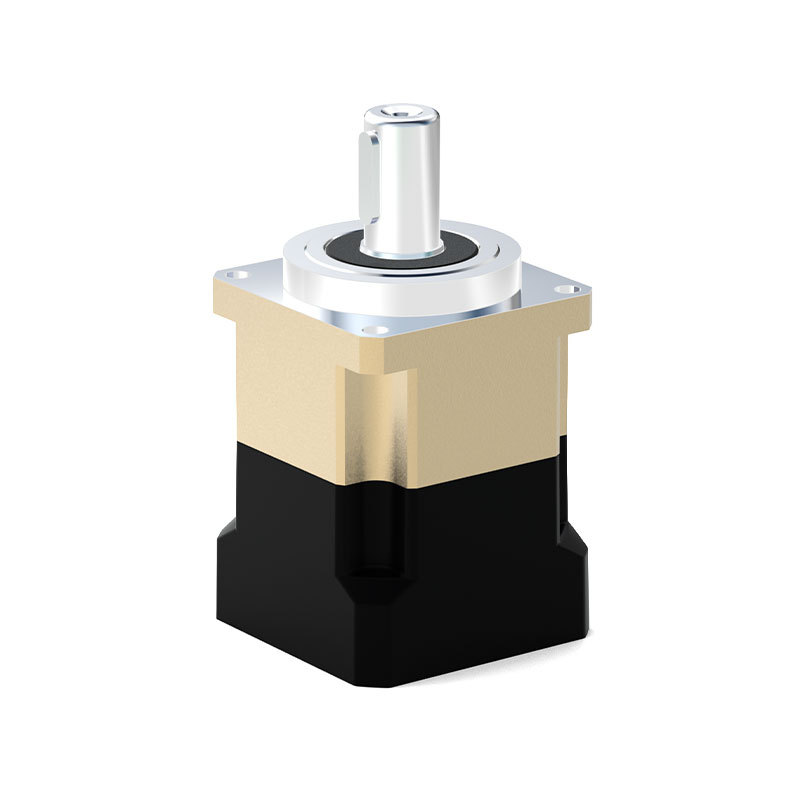

Low Noise: The use of helical gear design achieves smooth and quiet reducer operation.
High Precision: Backlash of 3 arcmin or less enables accurate positioning.
High Rigidity & High Torque: The output shaft uses a large-size, large-span double-support bearing design, which significantly improves the rigidity and torque of the reducer.
High Efficiency: Up to 95% or more for 1-stage, and 92% or more for 2-stage.
Maintenance-Free: Low grease wear allows for lifetime lubrication.
Excellent Sealing: The high-viscosity lubricating grease resists separation, and the IP65 protection rating ensures no grease leakage.
Unrestrained Installation: Can be installed in any orientation.
Wide Applicability: Compatible with all types of servo motors.

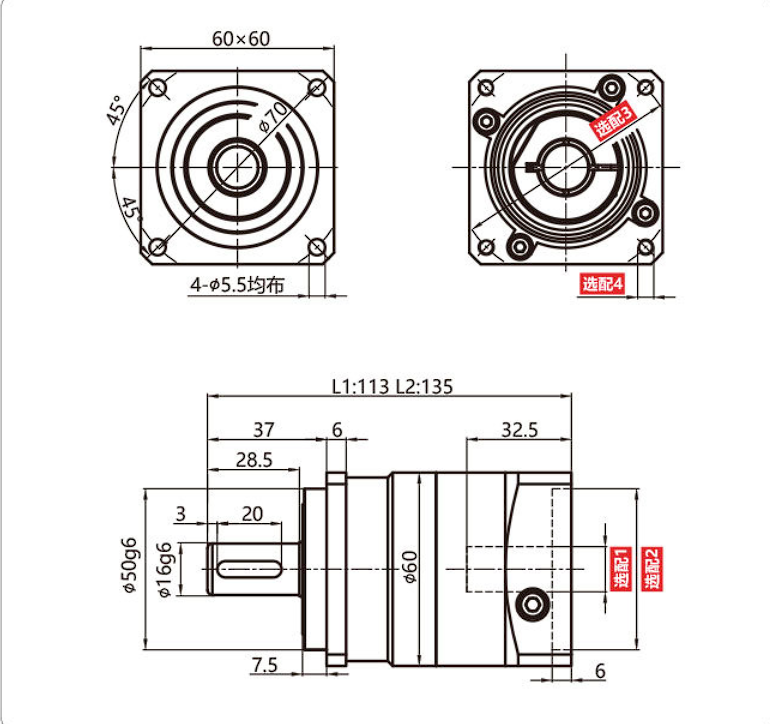

| Motor Type | Option 1 | Option 2 | Option 3 | Option 4 |
|---|---|---|---|---|
| 200W Servo | Ø14 | Ø50 | Ø70 | M4 |
| 400W Servo | Ø14 | Ø50 | Ø70 | M5 |
| 57 Stepper | Ø8 | Ø38.1 | Ø66.7 | M4 |
