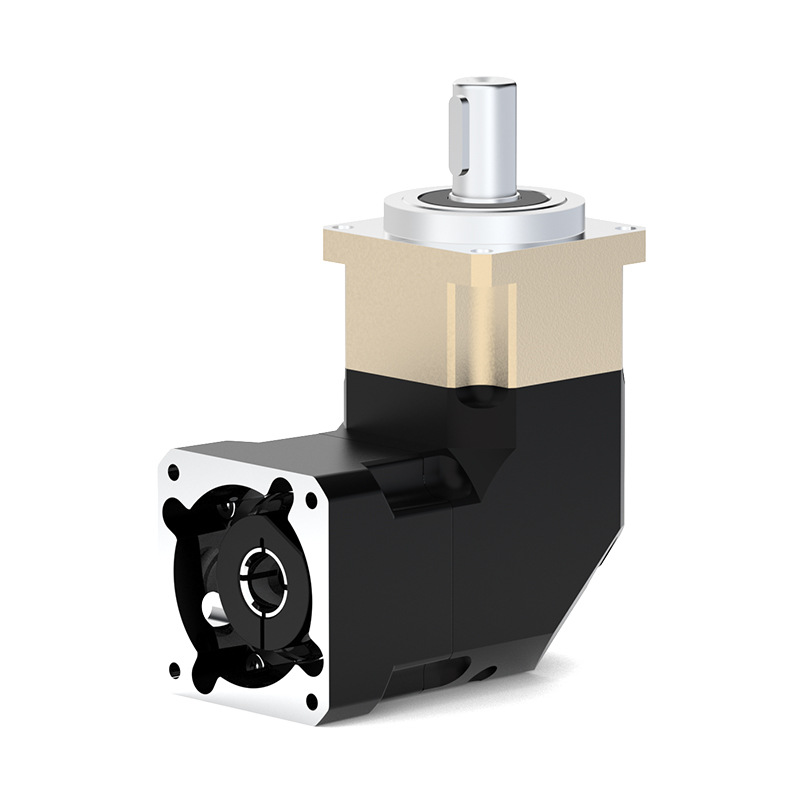

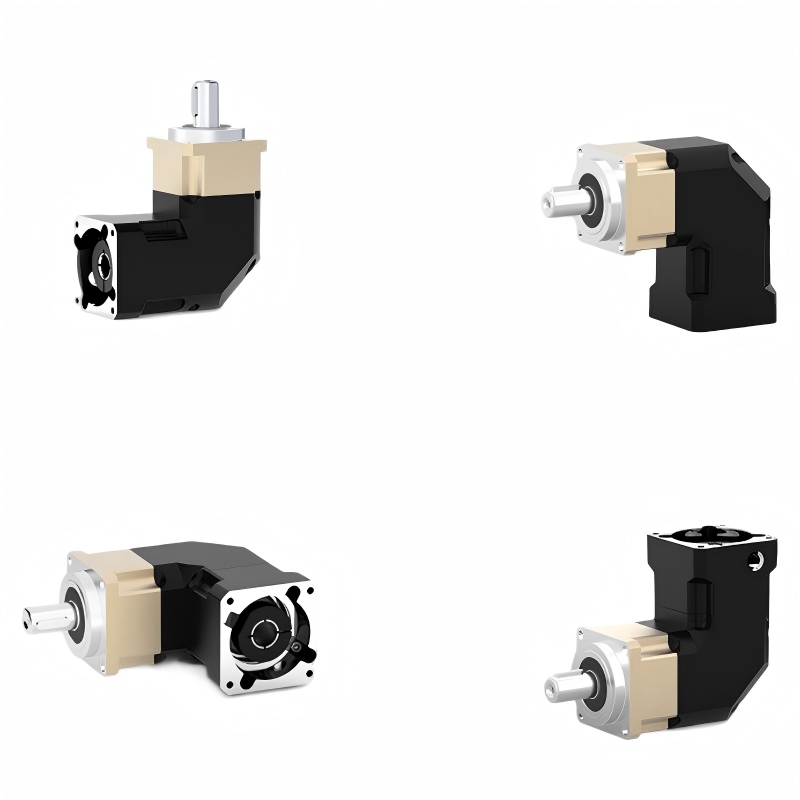

DBR Series Helical Precision Planetary Gearbox

Helical gear design ensures quiet operation. Backlash ≤5 arcmin for precise positioning. Large-size, double-support bearing boosts rigidity and torque. Efficiency: 1-stage ≥95%, 2-stage ≥92%. Low grease wear, lifetime lubrication. IP65 sealing prevents leakage. Any orientation. Fits all servo motors.

Features

Low Noise: Helical gear design achieves smooth and quiet reducer operation.

High Precision: Backlash ≤5 arcmin enables accurate positioning.

High Rigidity & High Torque: The output shaft uses a large-size, large-span double-support bearing design, significantly improving rigidity and torque.

High Efficiency: Up to 95% or more for 1-stage, and 92% or more for 2-stage.

Maintenance-Free: Low grease wear allows for lifetime lubrication.

Excellent Sealing: High-viscosity grease resists separation, and IP65 protection rating ensures no grease leakage.

Unrestrained Installation: Can be installed in any orientation.

Wide Applicability: Compatible with all types of servo motors.

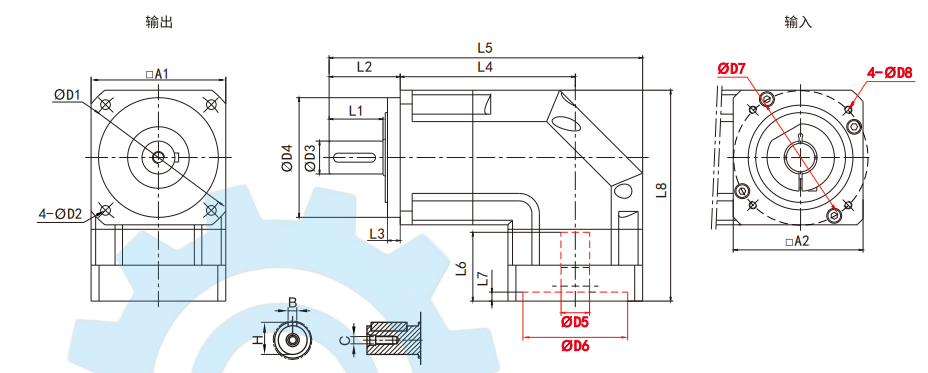

Dimension	D1	D2	D3	D4	D5	D6	D7	D8	L1	L2	L3	L4	L5	L6	L7	L8	A1	A2	B	H	C
DBR040	50	3.5	13	35	08	30	46	M4	20	26	05	58.5	107	27	05	78.5	45	45	05	15	M4
DBR060	70	5.5	16	50	14	50	70	M5	28.5	37	7.5	79	146	32.5	06	111.5	60	60	05	18	M5
DBR090	100	6.5	22	80	19	70	90	M6	36	48	10	112	205	47	07	155	90	90	06	24.5	M8
DBR120	130	9	32	110	22	110	145	M8	51	65	12	138.5	261	62.5	12	192	130	130	10	35.5	M12
DBR140	165	11	40	130	35	114.3	200	M12	82	97	13.5	172.5	339.5	80	08	237	140	180	12	43	M16
DBR180	215	13	55	160	42	114.3	200	M12	82	105	20	185	363	120	08	294.5	180	180	16	59	M20
DBR220	250	17	75	180	42	180	215	M12	105	138	30	227	465	87	10	329	220	200	20	79.5	M20
