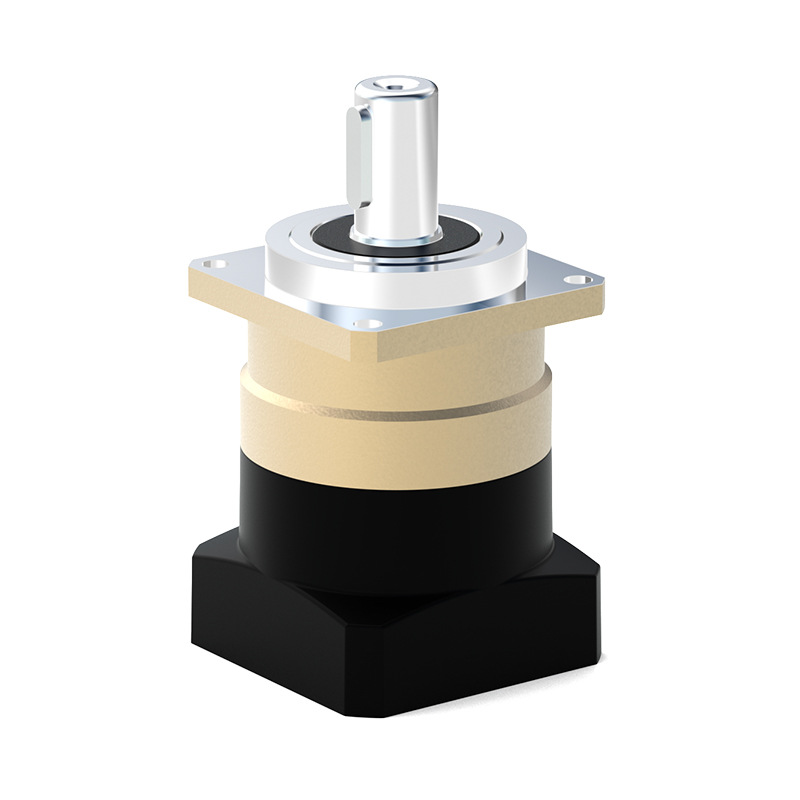

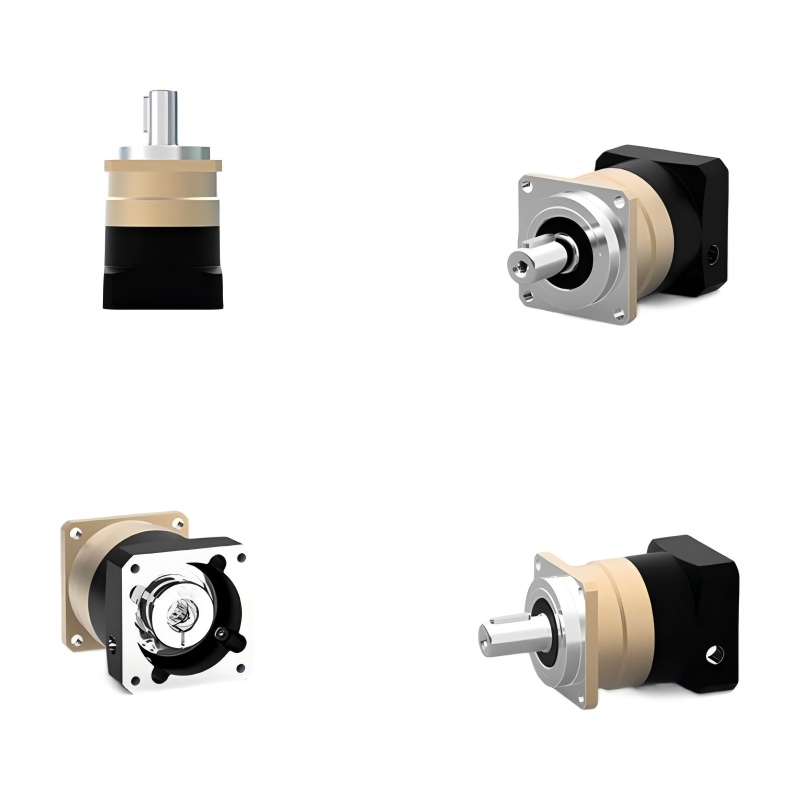

Low Noise: Helical gear design achieves smooth and quiet reducer operation.
High Precision: Backlash ≤3 arcmin enables accurate positioning.
High Rigidity & High Torque: The output shaft uses a large-size, large-span double-support bearing design, significantly improving rigidity and torque.
High Efficiency: Up to 95% or more for 1-stage, and 92% or more for 2-stage.
Maintenance-Free: Low grease wear allows for lifetime lubrication.
Excellent Sealing: High-viscosity grease resists separation, and IP65 protection rating ensures no grease leakage.
Unrestrained Installation: Can be installed in any orientation.
Wide Applicability: Compatible with all types of servo motors.

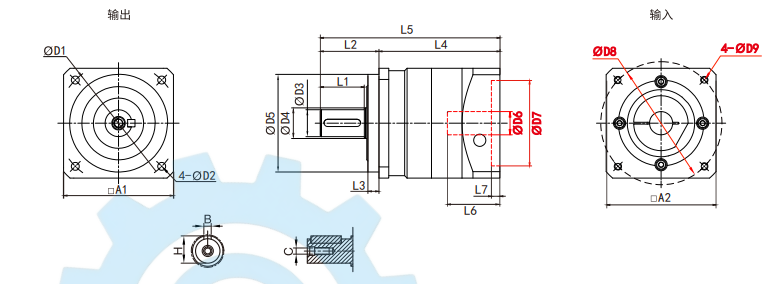

| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | A1 | A2 | B | H | C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN060 | 70 | 5.5 | 16 | 17.7 | 50 | 14 | 50 | 70 | M5 | 28.5 | 37 | 7.5 | 76 | 113 | 32.5 | 06 | 60 | 60 | 05 | 18 | M5 |
| DN090 | 100 | 6.5 | 22 | 25 | 80 | 19 | 70 | 90 | M6 | 36 | 48 | 10 | 99 | 147 | 47 | 07 | 90 | 90 | 06 | 24.5 | M8 |
| DN120 | 130 | 09 | 32 | 38 | 110 | 22 | 110 | 145 | M8 | 51 | 65 | 12 | 124 | 189 | 62.5 | 12 | 130 | 130 | 10 | 35.5 | M12 |
| DN140 | 165 | 11 | 40 | 45 | 130 | 35 | 114.3 | 200 | M12 | 82 | 97 | 13.5 | 160 | 257 | 81.5 | 08 | 140 | 180 | 12 | 43 | M16 |
| DN180 | 215 | 13 | 55 | 75 | 160 | 42 | 114.3 | 200 | M12 | 82 | 105 | 20 | 232 | 320 | 117.5 | 08 | 180 | 180 | 16 | 59 | M20 |
| DN220 | 250 | 17 | 75 | 85 | 180 | 42 | 180 | 215 | M12 | 105 | 138 | 20 | 191 | 329 | 87 | 10 | 220 | 200 | 20 | 79.5 | M20 |
