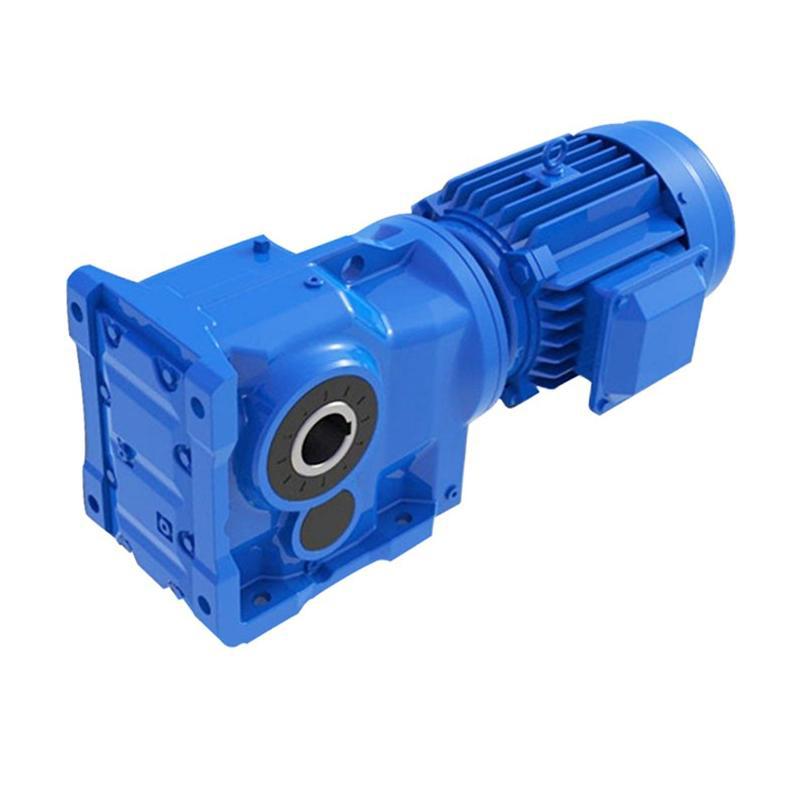

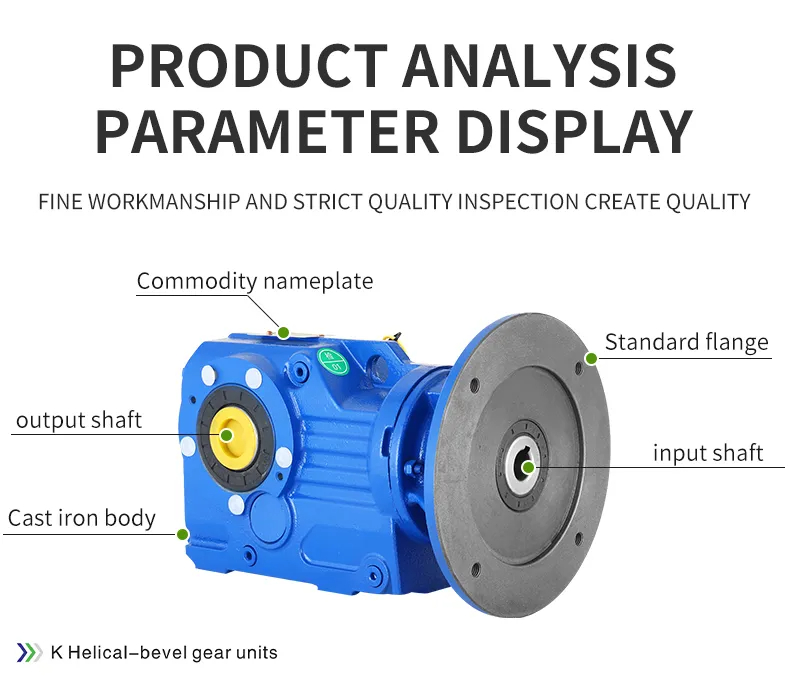

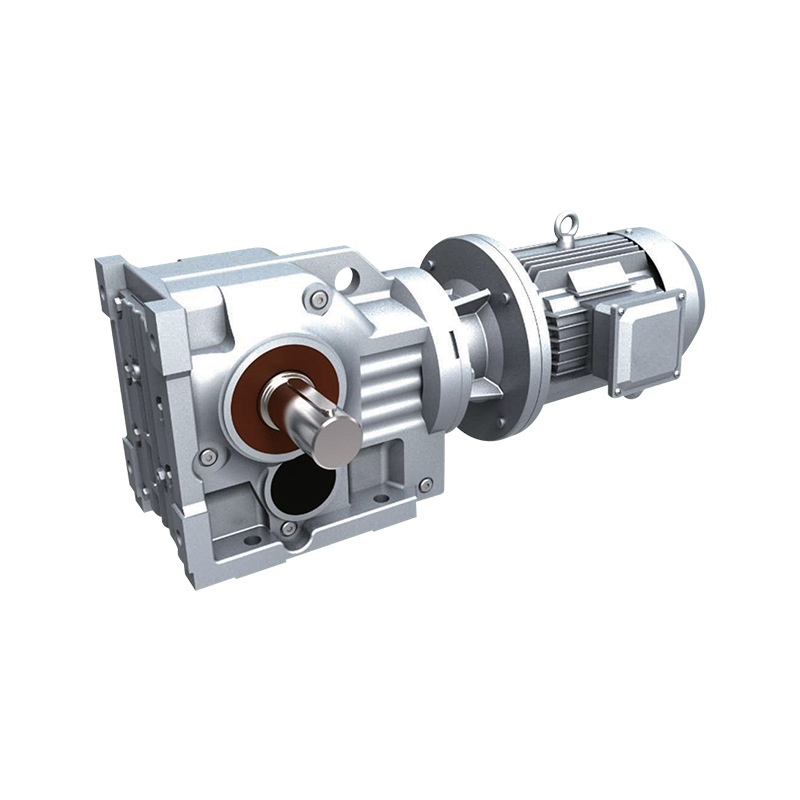

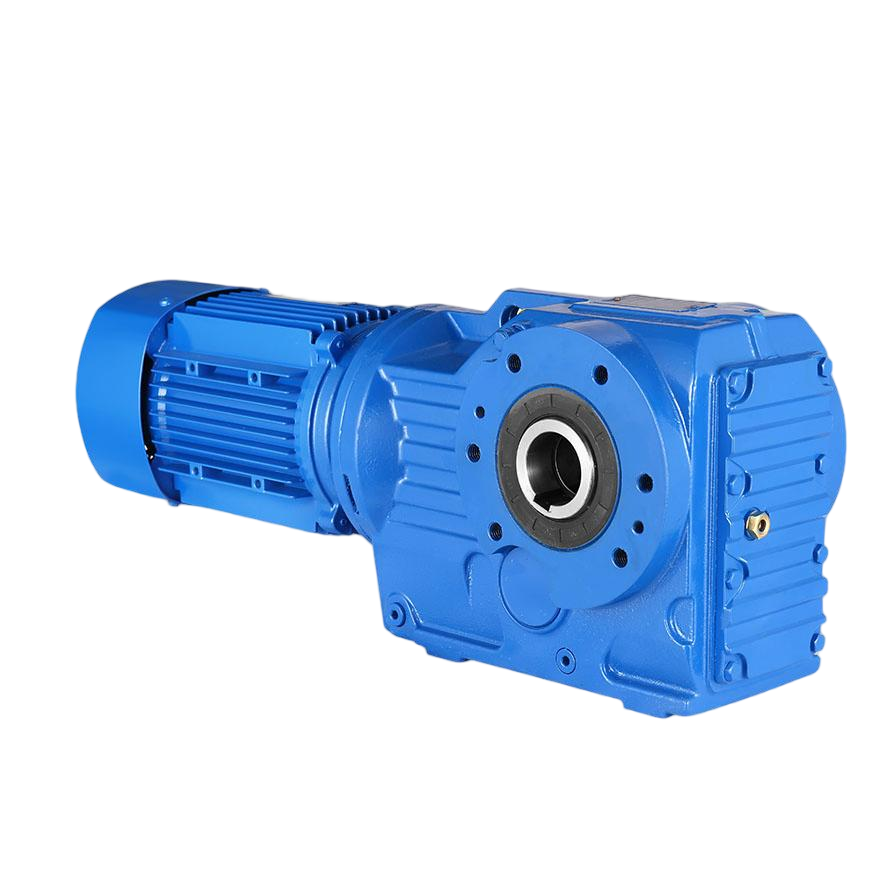

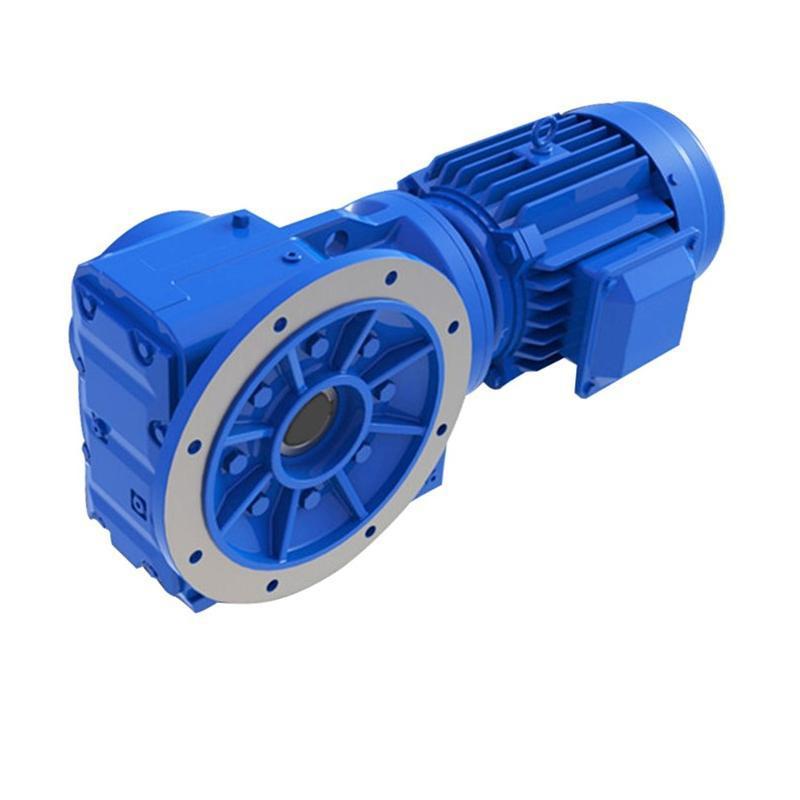

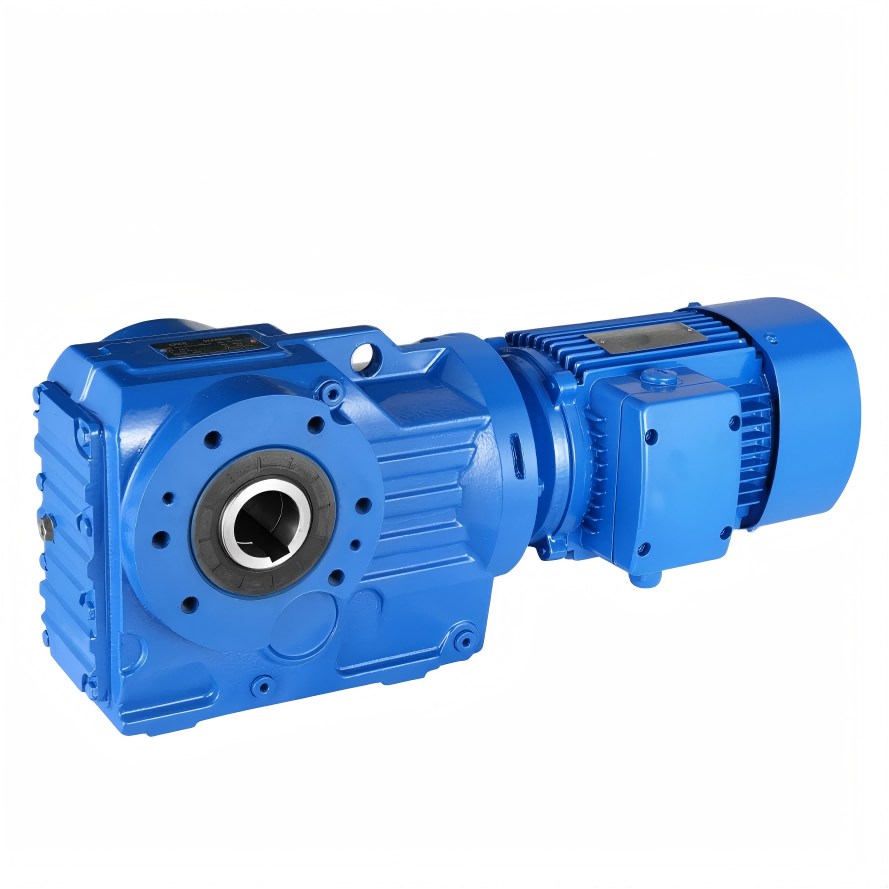

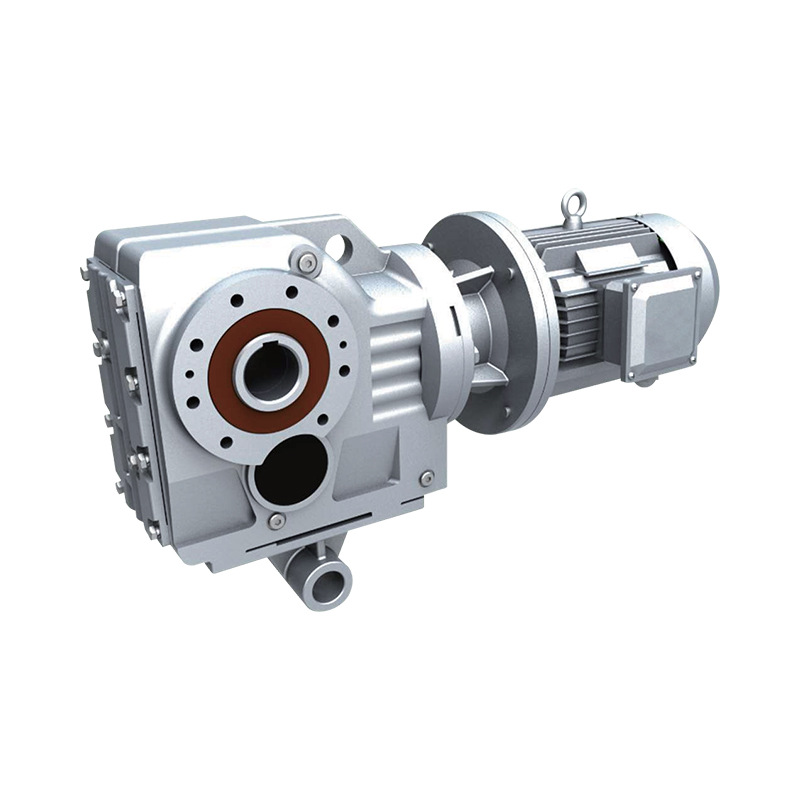

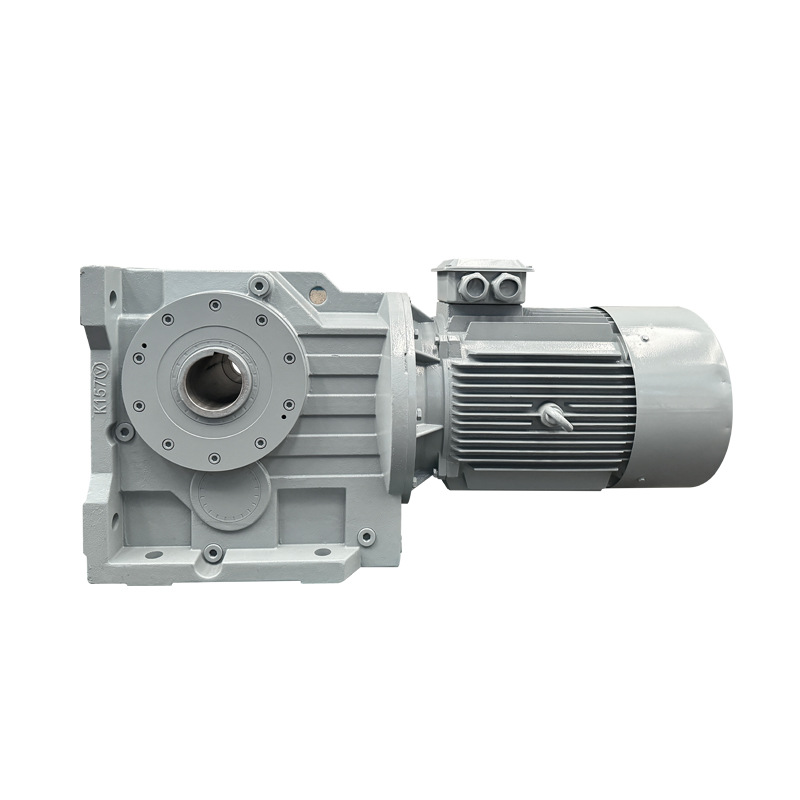

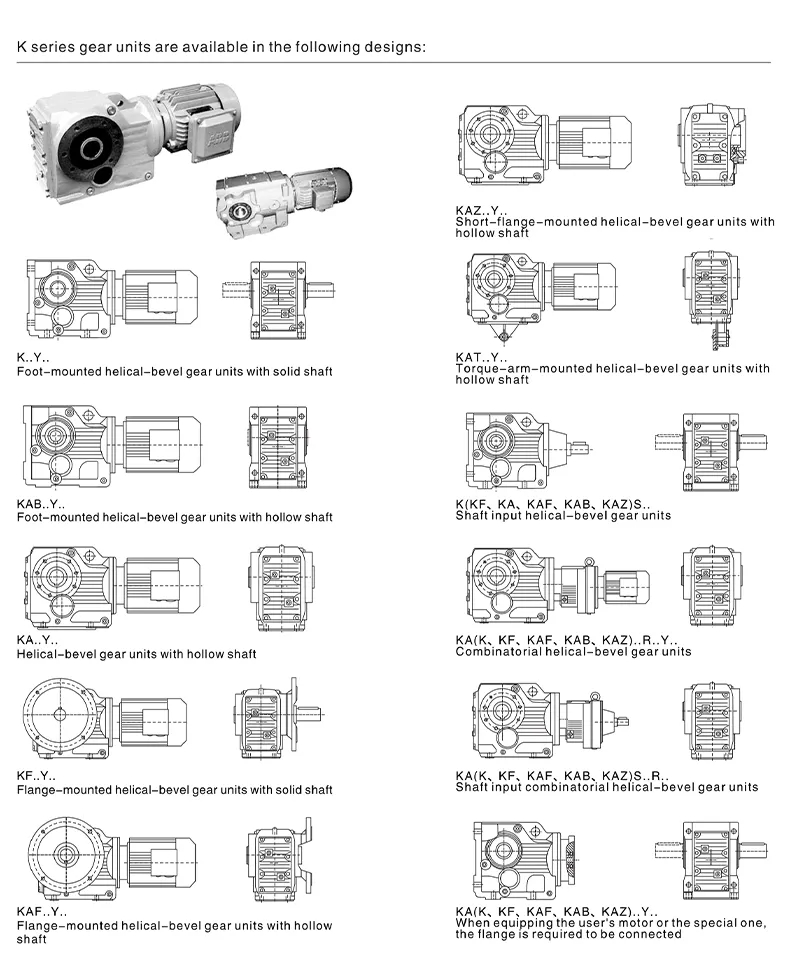

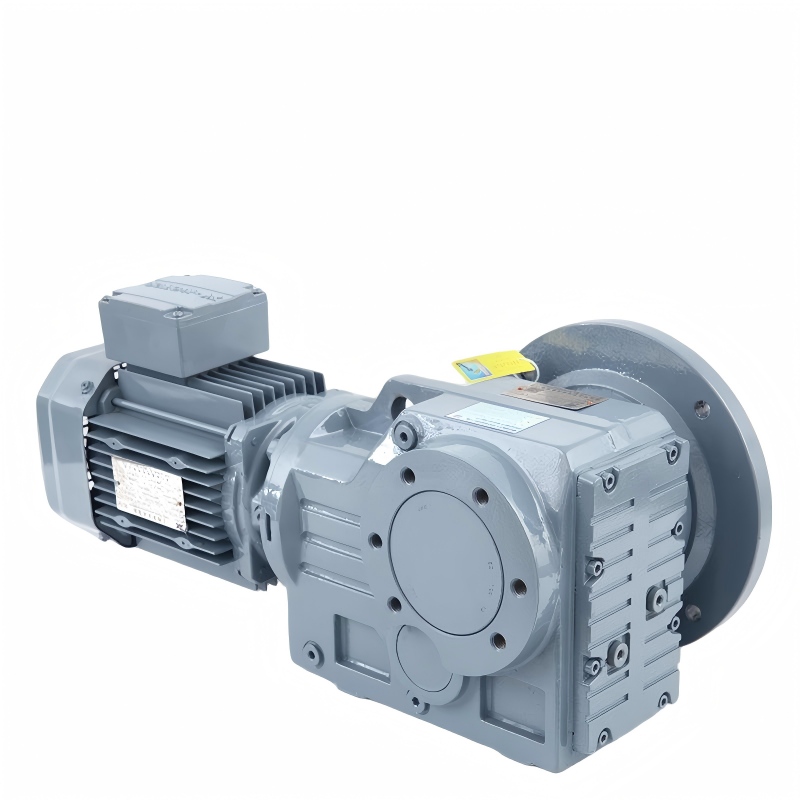

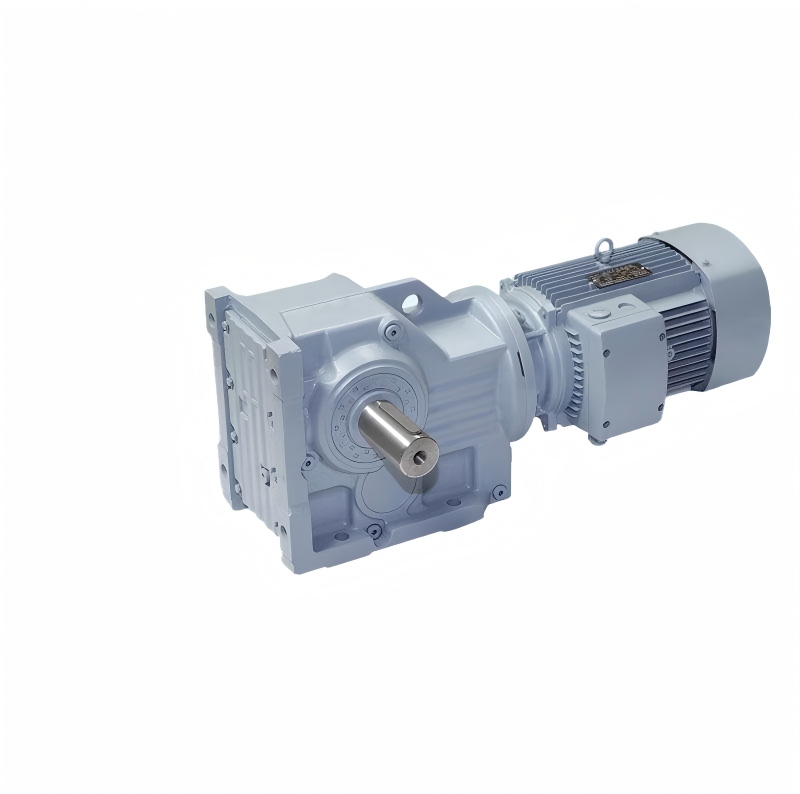

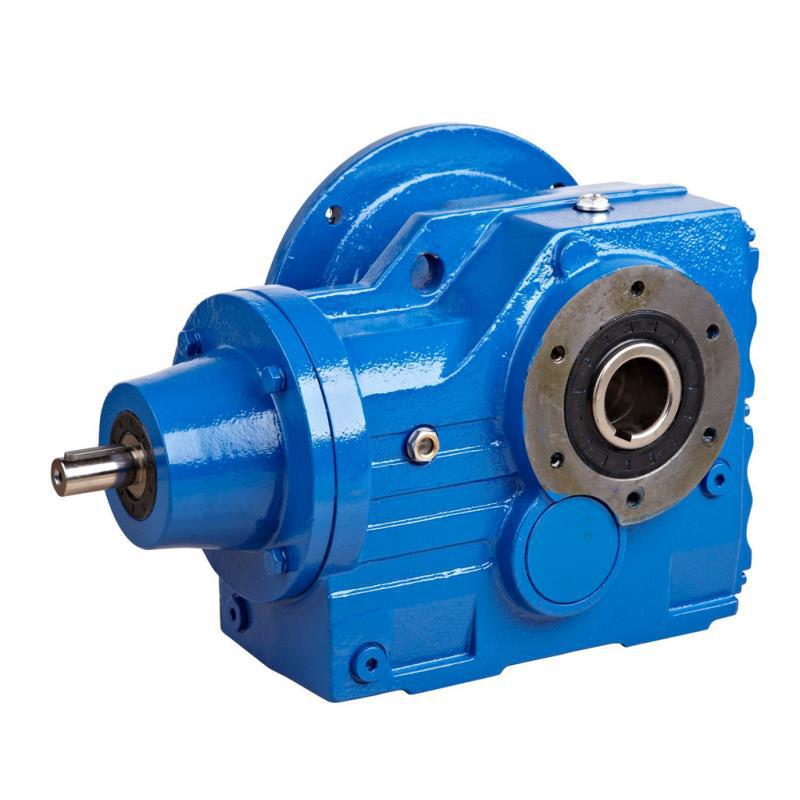

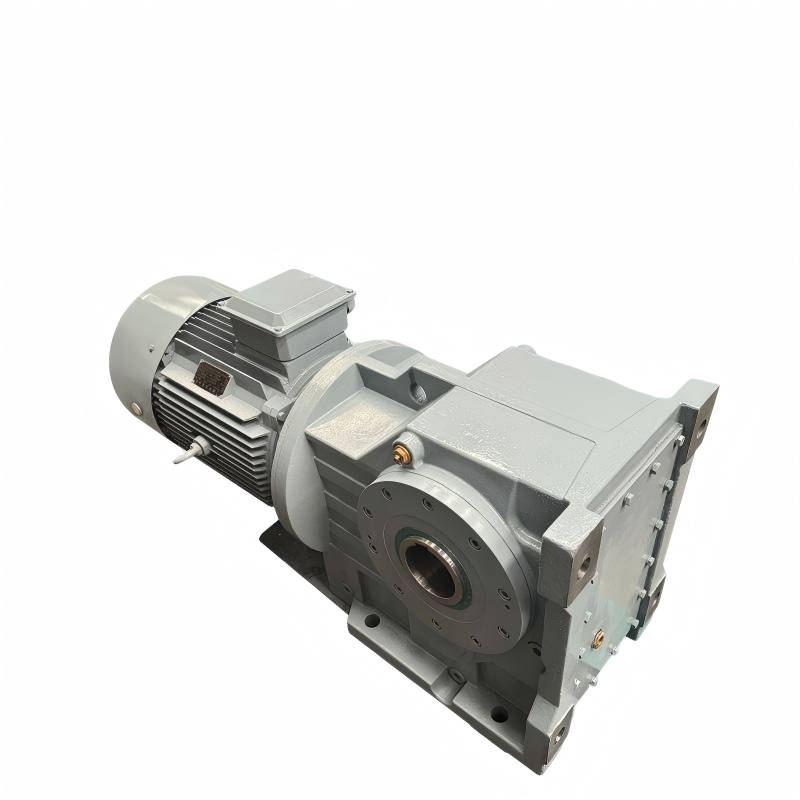

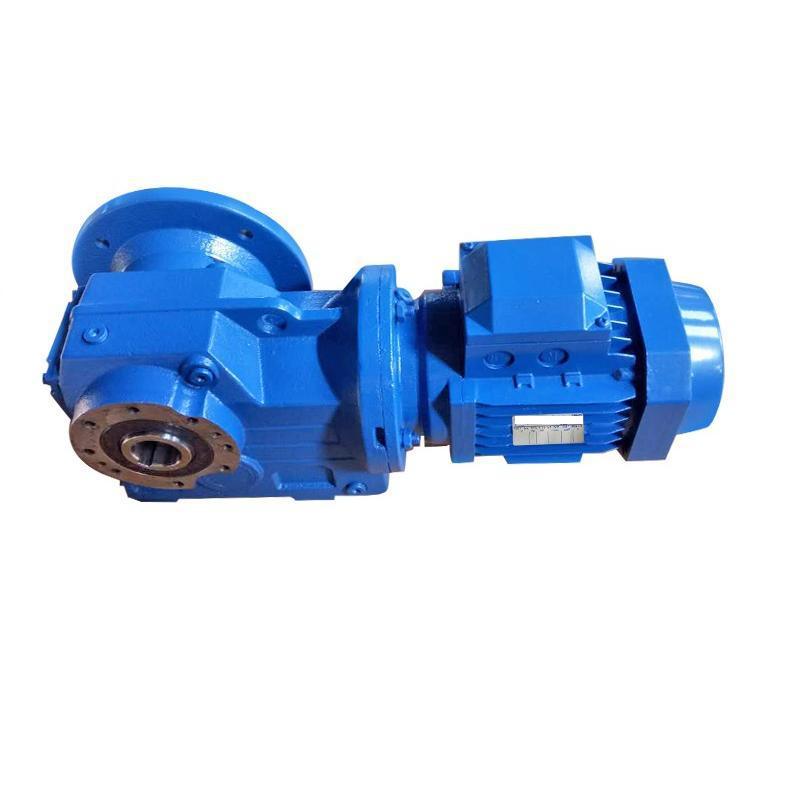

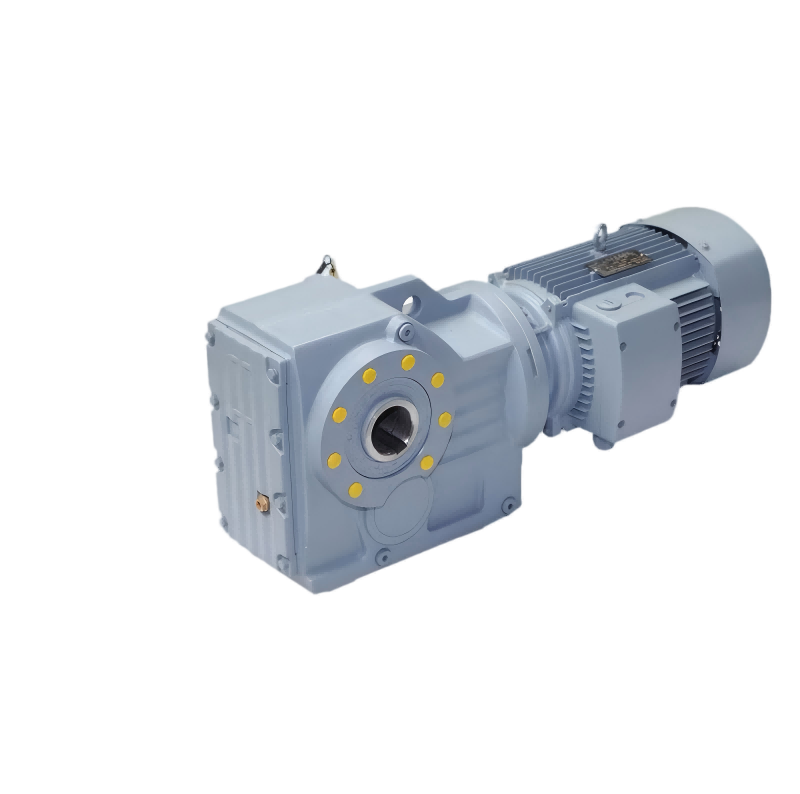

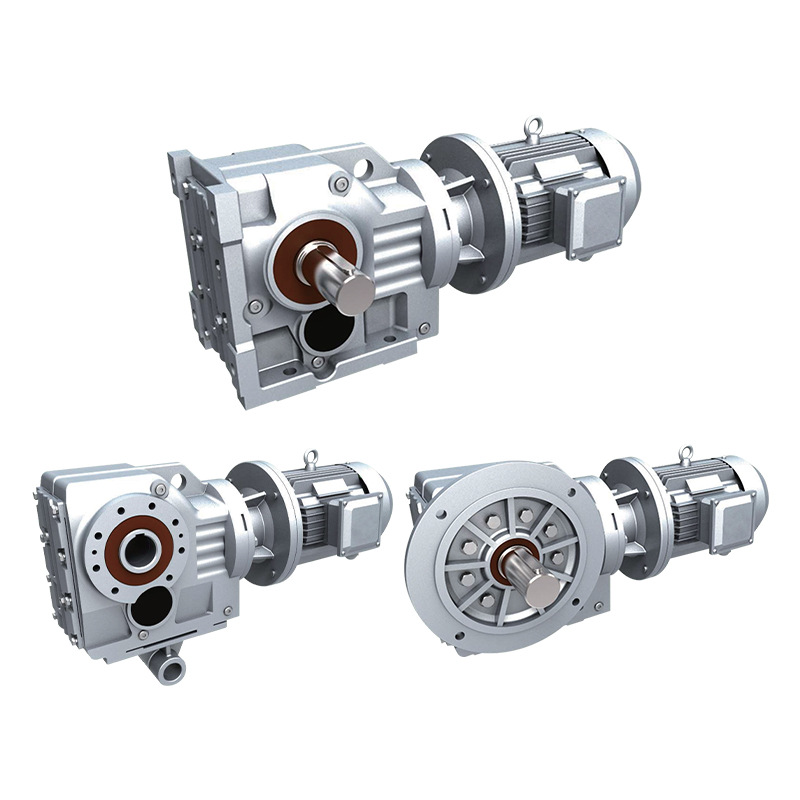

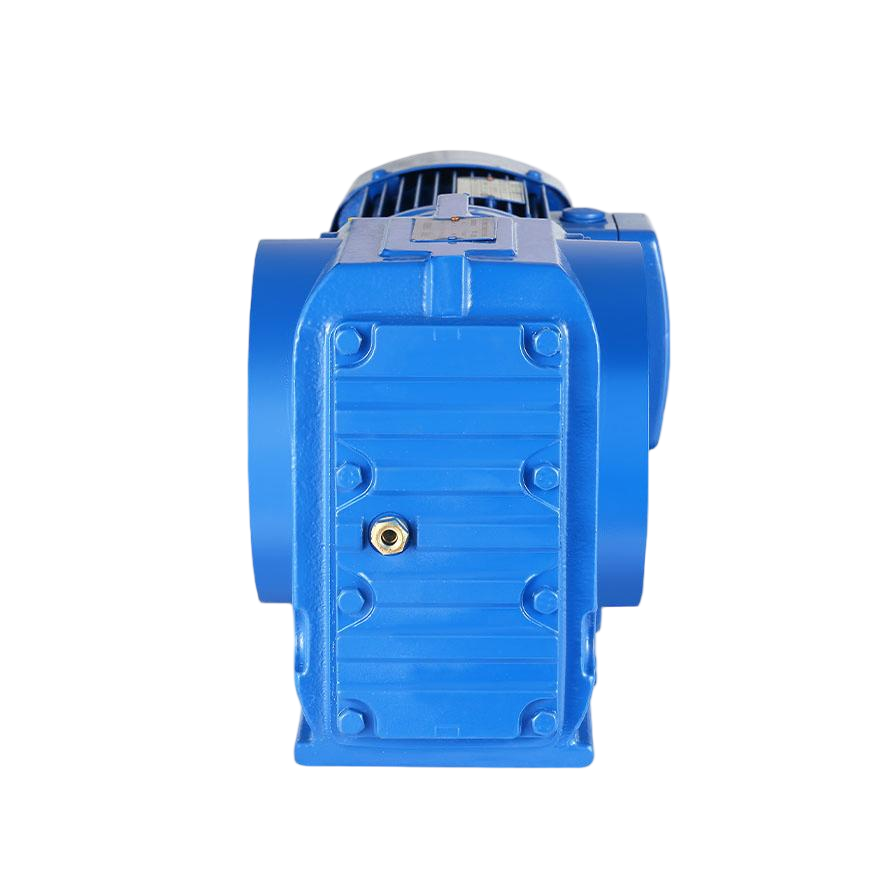

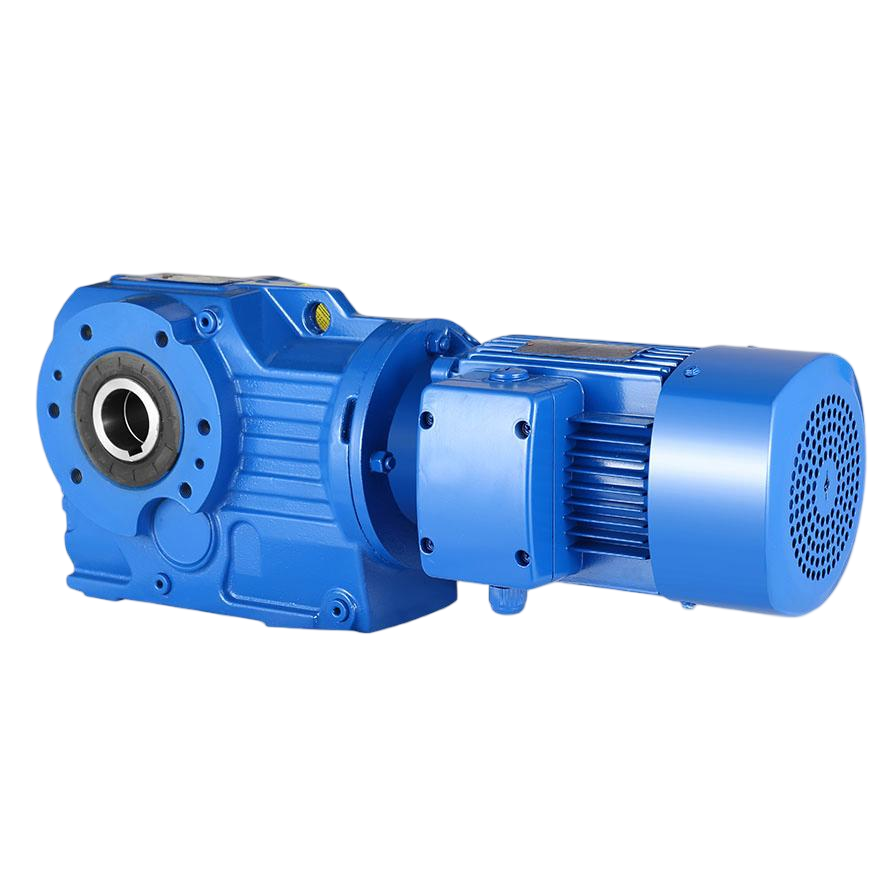

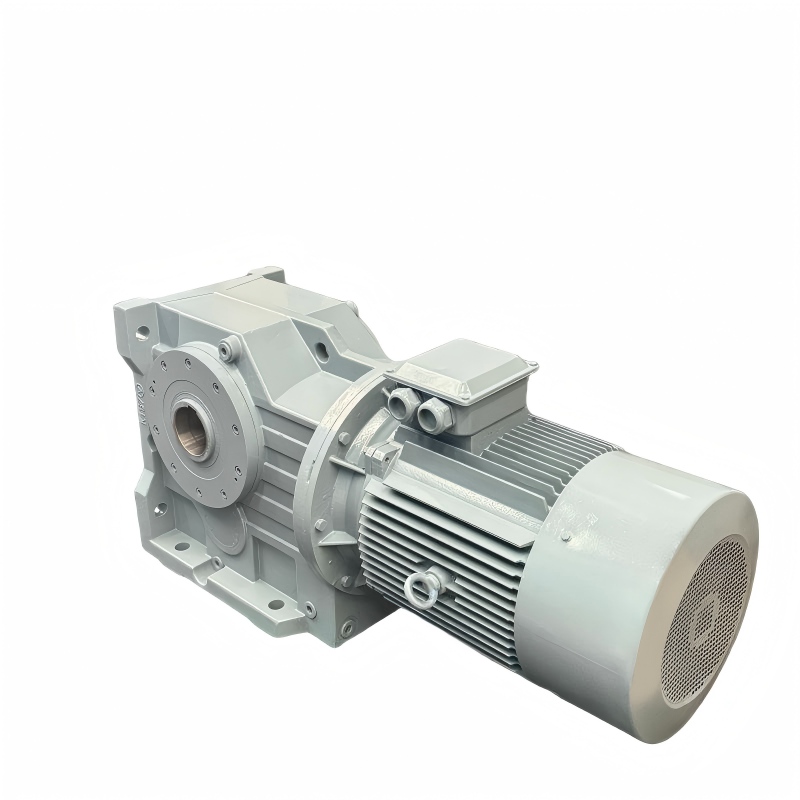

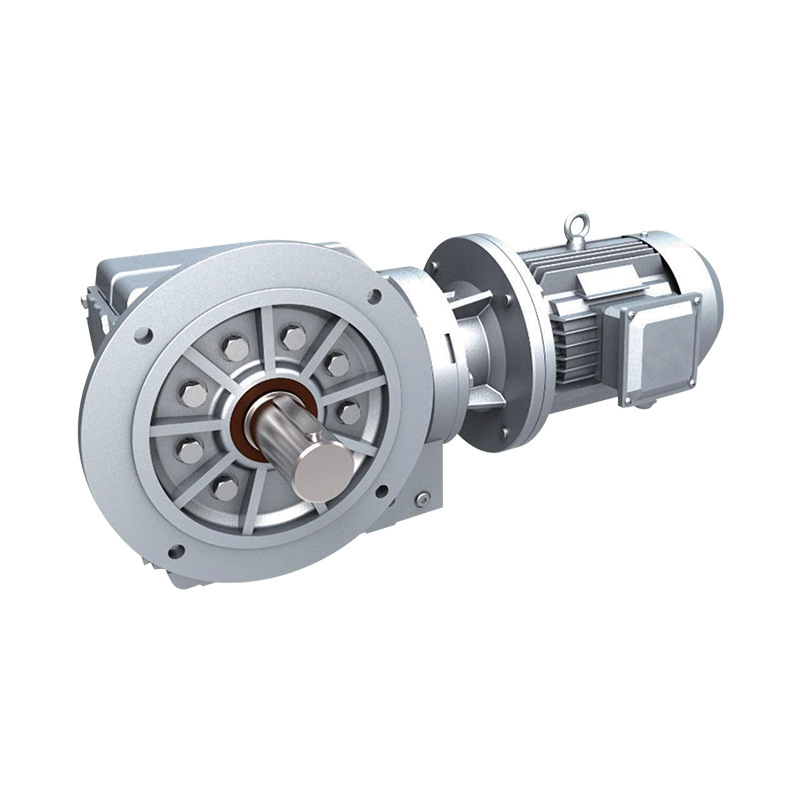

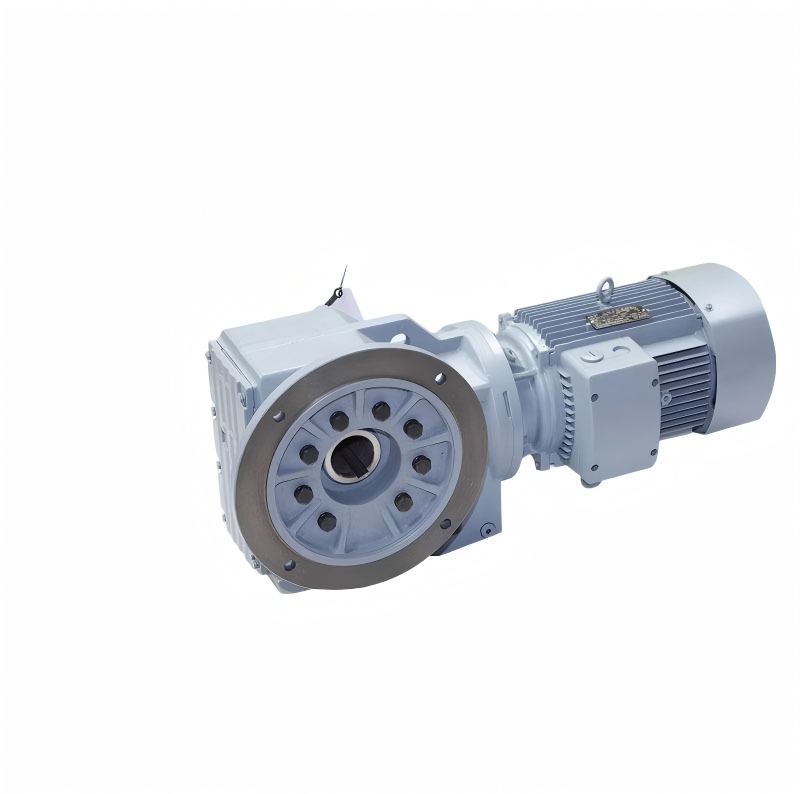

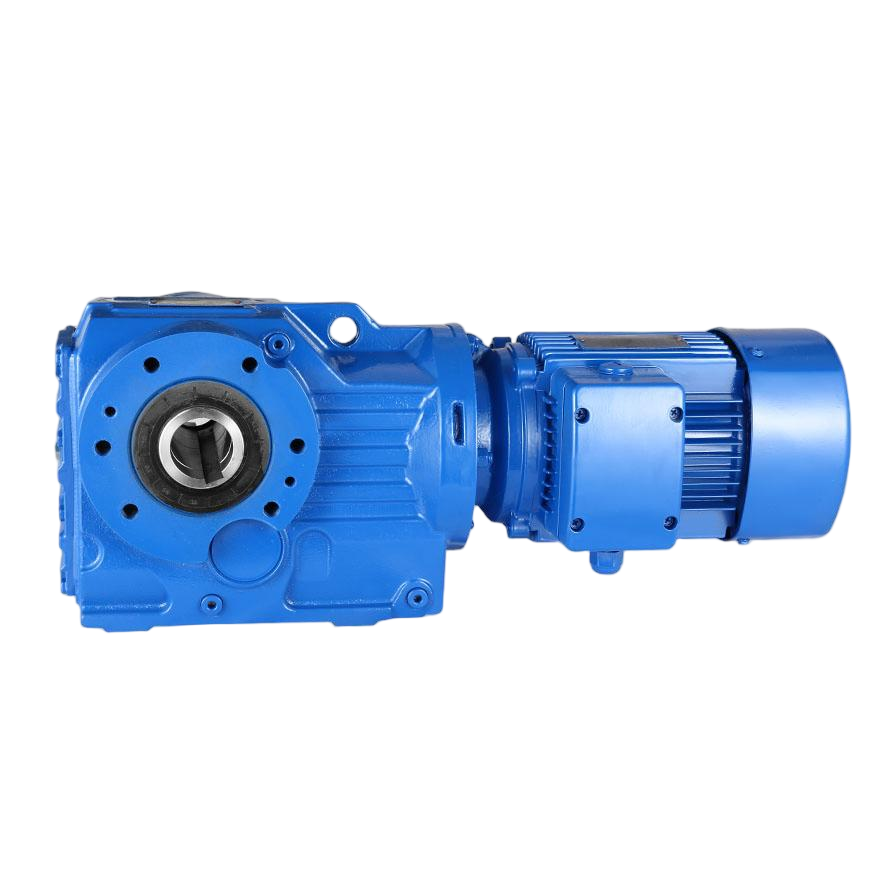

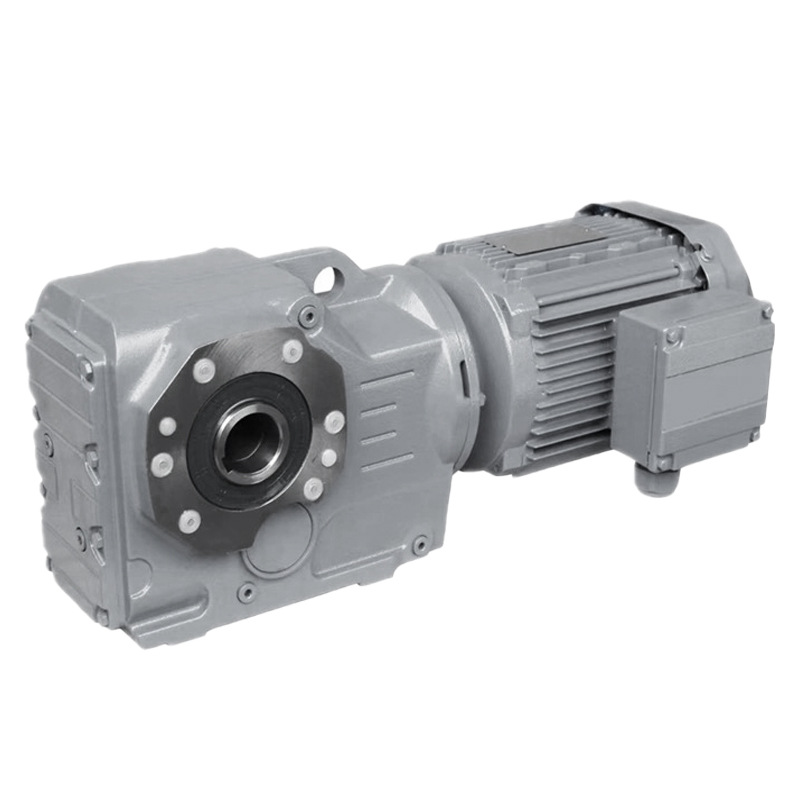

The K series helical-bevel geared motor is designed with a modular approach, enabling a wide range of combinations, mounting arrangements, and structural variants. A finely graded ratio selection allows the unit to meet diverse operating conditions.
The drive features high transmission efficiency, low energy consumption, and excellent overall performance. Its case-hardened gearing is manufactured from high-quality alloy steel, processed through carburizing, quenching, and precision grinding. This results in smooth and reliable transmission, low noise and temperature rise, high torque capacity, and extended operational life.
| housing material: | HT2OO high-strength cast iron or HT250 High strength cast iron |
| Gear material: | 20CrMnTi |
| Housing hardness | HBS90-240 |
| Surface hardness of gear | HRC58°-62° |
| Gear core hardness | HRC33°-40° |
| Input/Output shaft material | 40Cr |
| Input/Output shaft hardness | HBS241°-286° |
| Shaft at oil seal position hardness | HRC48 ° -55 ° |
| Machining precision of gears material | Accurate grinding 6-5 grade |
| Efficiency | up to 98% |
| Noise(Max) | 60-68dB |
| Temp.rise: | 40°C |
| Vibration | ≤20um |
| Motor | IP54, F class ,B5 FLANGE |
| color : |
Custom colors are available.
|
