Low Noise: Helical gear design ensures smooth and quiet operation.
High Precision: Backlash of 8 arcmin or less enables accurate positioning.
High Rigidity & High Torque: The output shaft features a large-size, large-span double-support bearing design, which significantly improves rigidity and torque capacity.
High Efficiency: Up to 95% or more for 1-stage, and 92% or more for 2-stage.
Maintenance-Free: Low grease wear allows for lifetime lubrication.
Excellent Sealing: High-viscosity lubricating grease resists separation, and the IP65 protection class ensures zero grease leakage.
Flexible Installation: Can be installed in any orientation.
Wide Applicability: Compatible with all types of servo motors.

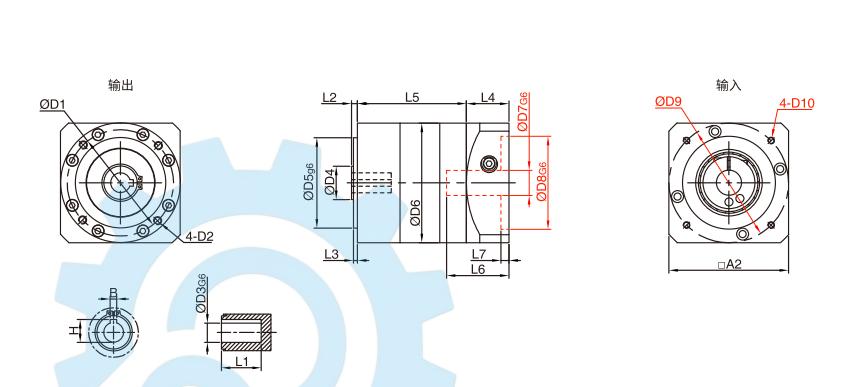

| Model | D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | D10 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | A2 | B | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLN60-L1 | 52 | M5 | 10 | 17 | 40 | 60 | 14 | 50 | 70 | M4 | 20 | 5 | 3 | 21 | 56 | 31 | 4 | 60 | 3 | 11.4 |
| PLN80-L1 | 70 | M6 | 15 | 25 | 60 | 80 | 19 | 70 | 90 | M5 | 30 | 4.5 | 3 | 38 | 60.5 | 42 | 5 | 80 | 5 | 17.3 |
| PLN90-L1 | 80 | M6 | 15 | 25 | 60 | 80 | 19 | 70 | 90 | M5 | 30 | 4.5 | 3 | 32 | 77.5 | 47 | 6 | 90 | 5 | 17.3 |
| PLN120-L1 | 100 | M10 | 20 | 35 | 80 | 120 | 22 | 110 | 145 | M8 | 38 | 5.5 | 4 | 50 | 96.5 | 57.5 | 10 | 120 | 6 | 22.8 |
| PLN160-L1 | 145 | M12 | 35 | 55 | 130 | 165 | 35 | 114.3 | 200 | M12 | 61 | 7 | 5 | 62 | 132 | 86 | 10 | 176 | 10 | 38.3 |
