1, WP series worm gearbox ‘s the transmission smooth, vibration, shock and noise are small, a large reduction ratio, wide versatility, with all kinds of mechanical equipment.
2, WPA series speed reducer are able to obtain a larger single-stage transmission gear ratio, compact, most models have better gear self-locking, braking requirements for mechanical equipment can save brakes
3, worm thread engagement with the worm gear tooth surface friction loss greater than the gear transmission efficiency and therefore low, easy to heat and higher temperatures.
4, interworking good worm manufactured according to national standards, bearings, seals etc with standard parts. 5,
5, box type basic type (vertical or horizontal box for two structures with bottom foot) and the universal type (box is rectangular, multi-faceted with fixed screw, not fitted with bottom foot or the other end foot and other structural type)
6, WP series gear box input shaft coupling methods are the basic type (single input shaft and dual input shaft), two motor with flange.
7, WP series reducer ‘ output, position and direction of the input shaft and the input shaft on the next; the output axis and down; the input shaft and down.
8, WP series worm gearbox can be 2 or 3 sets consisting of multi stage gear reducer to get great gear ratio.

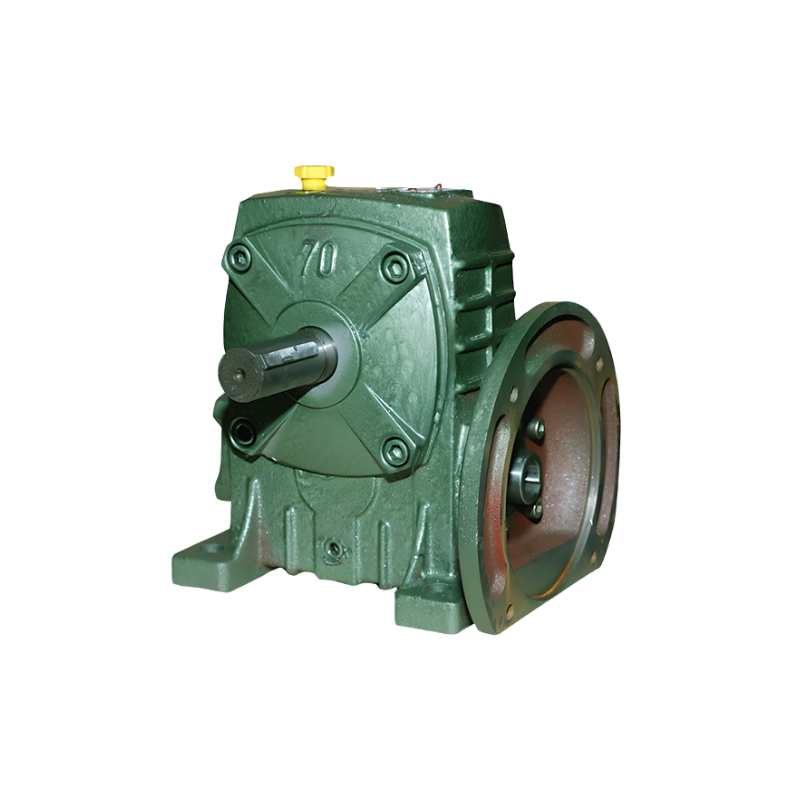

| Type: | WP gears reduction gear |
| Model: | WPA40-250 |
| Ratio: | 10,15,20,25,30,40,50,60 |
| Color: | Green,Brown |
| Material: | Cast iron body |
| Worm Gear- Cooper-10-3 # | |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Shaft-chromium steel-45# | |
| Packing: | Paper Carton,Plywood box / per set(With foam board inside) |
| Warranty: | 1 year |
| Input Power: | 0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw |
| Usages: | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics….. |
| IEC Flange: | 80B5,90B5,100B5,112B5,132B5…. |
| Lubricant: | Synthetic & Mineral |
