YC 132m-2 5.5kw 7.5HP 110/220V Single Phase Electric Motor
1.YC asynchronous motor is a kind of low-voltage 1-phase cage induction electric motor, which is a basic series for general uses with frame range 80-132 and it’s a new product with the national unified design.
2.High efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque are all it’s strengths.

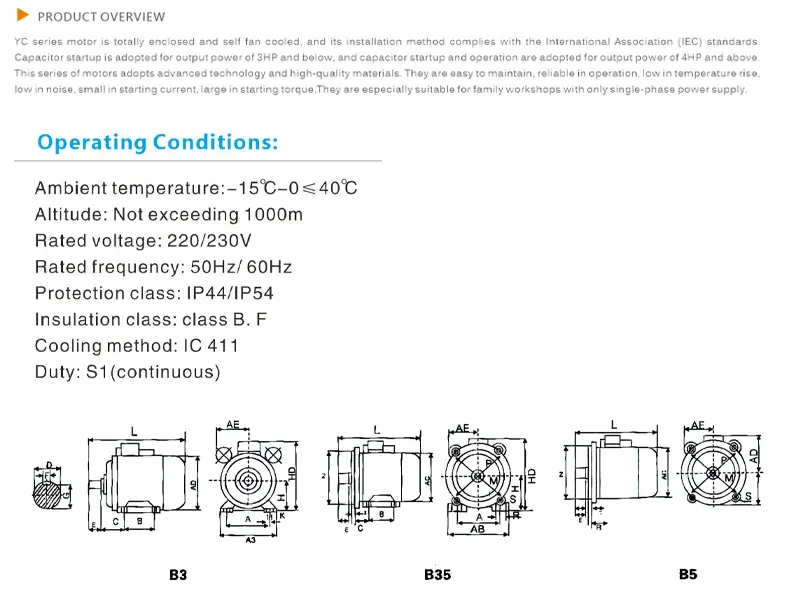

3. Fixing measurement and power grade completely conform to IEC standard. It employs Grade F insulation, IP54 or IP55 class for shell protection and IC411 cooling mode.
| Power: | 0.55kw-5.5kw | Voltage: | 220/230V( can can done as your need) |
| Frequency: | 50/60hz | Enamelled Wire: | Copper Wire (Can Done Aluminum wire as Your Need) |
| Insulation Class: | F | Mounting Way: | B3 Foot |
| Protection Grade: | IP54 | motor body : | cast iron body of ac motor |
