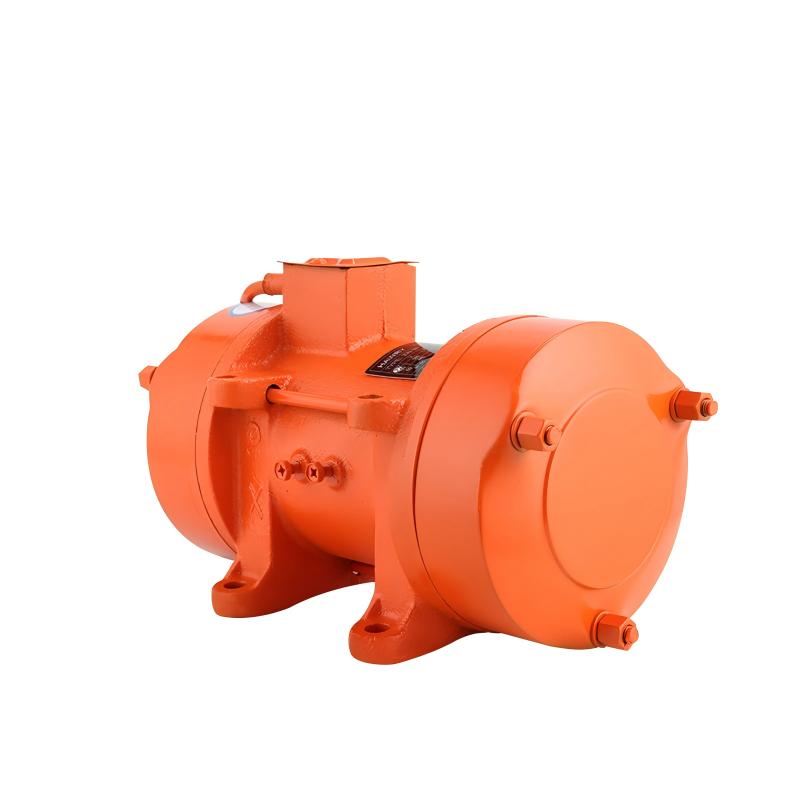

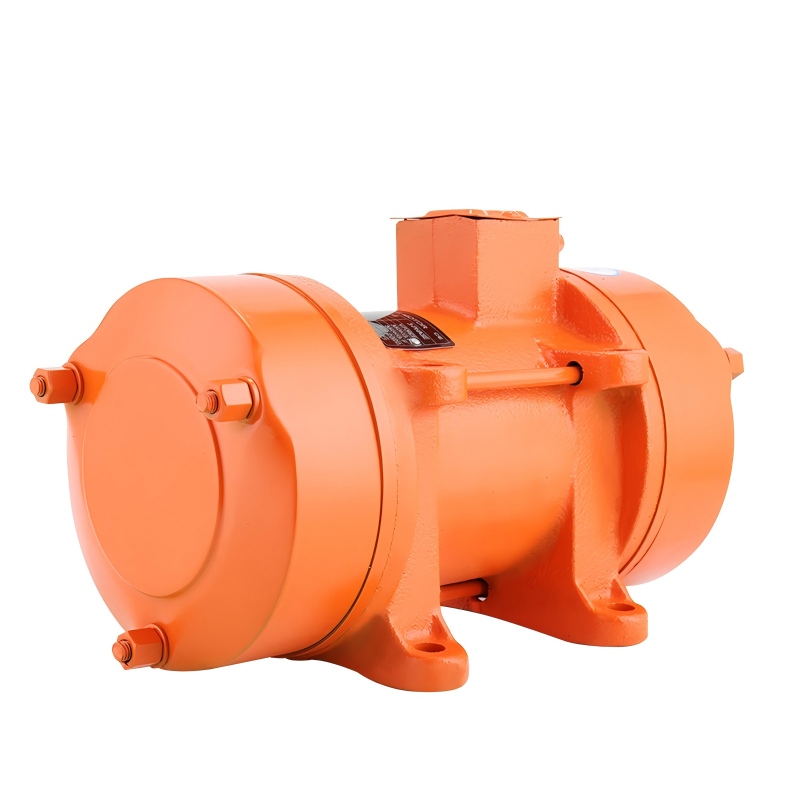

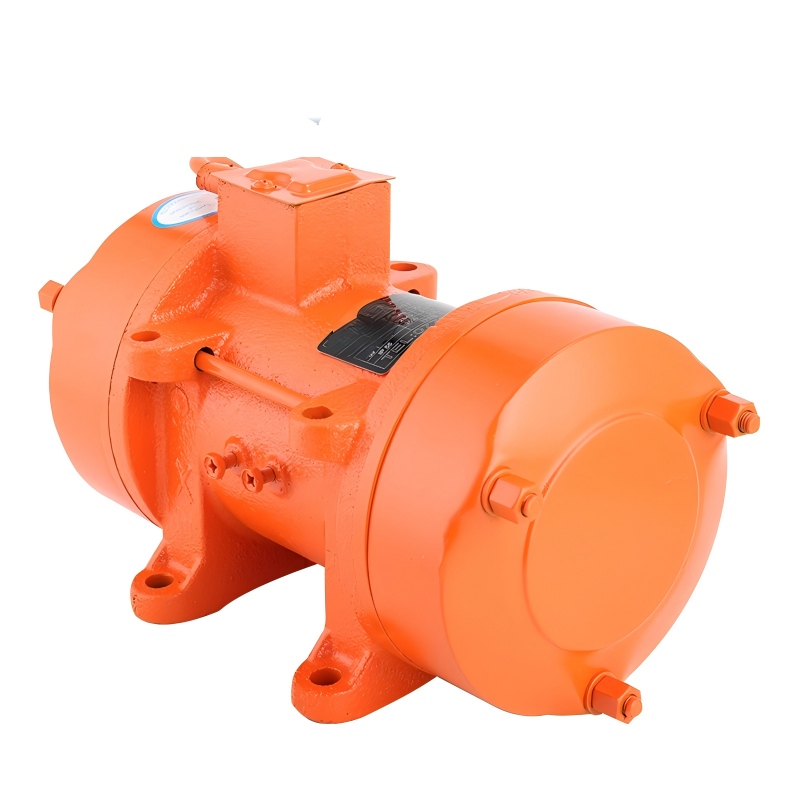

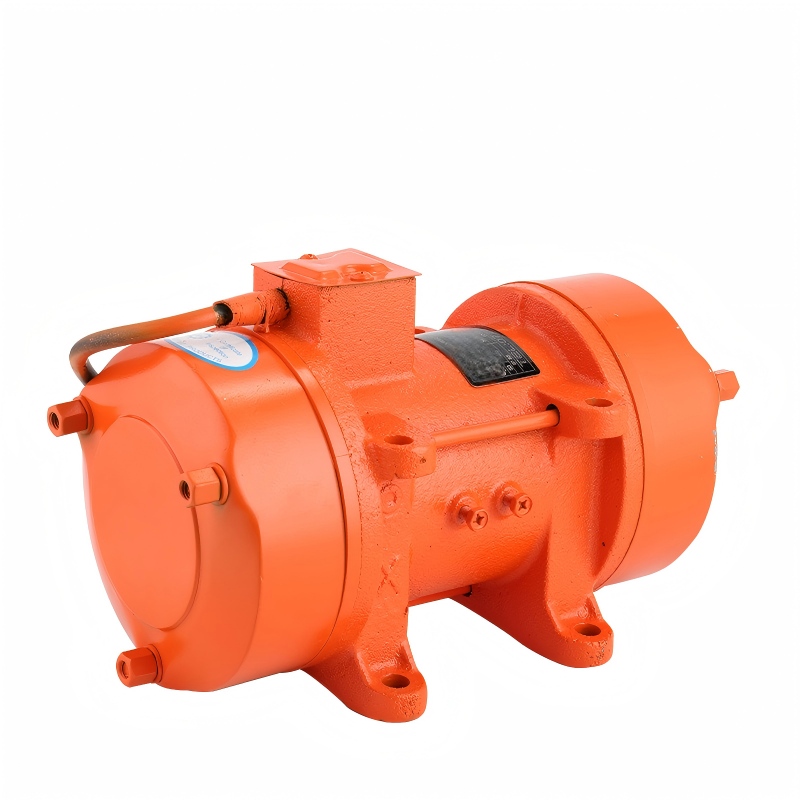

External Concrete Vibrator – 0.75KW / 1.1KW / 1.5KW / 2.2KW
Applications
Designed for vibrating tables, brick making machines, vibrating screens, and base plate mounting. Widely used on modern construction sites for consolidating freshly-poured concrete foundations and compacting precast concrete surfaces.
Features
-
Eccentric Block Design – Built with single-phase or three-phase asynchronous motor rotors, with eccentric blocks installed on both sides matched to motor power.
-
Durable & Maintainable – Fully enclosed structure with high strength; easy to disassemble, install, and maintain. Equipped with quad-rubber cable for reliable electrical connection.
-
Lightweight & Robust – Entire housing made of aluminum alloy for lightness and high power output. End caps securely fastened with three long bolts for exceptional stability and durability.
-
ZW Series External Concrete Vibrator – Technical Specifications
Model Power (KW/HP) Vibrating Force (KN) Voltage (V) Frequency (Hz) Weight (KG) Dimensions (cm) No. ZW-9P 3 / 4 13 380 50/60 30 55 × 28 × 30 005 ZW-7P 2.2 / 3 10 220 / 380 50/60 26 47.5 × 26 × 28 004 ZW-5P 1.5 / 2 7 220 / 380 50/60 20 43 × 22.5 × 25 003 ZW-3P 0.75 / 1 2.5 220 / 380 50/60 11 34 × 19 × 22 002 ZW-3P 0.55 / 0.75 1.5 220 / 380 50/60 9.5 34 × 19 × 22 002 ZW-1P 0.25 / 0.3 0.8 220 / 380 50/60 9 25 × 16.5 × 16 001
